[Spring REST API #10] Spring REST Docs 개념 및 적용

| Spring REST Docs

• Spring REST Docs는 REST API 에 대한 정보를 제공하는 Docs를 생성할 수 있는 Spring에서 제공하는 툴 이다.

• Spring MVC Test 코드 작성 시 추가적으로 Docs를 생성하는 코드를 첨가하여 생성할 수 있다.

• REST Docs 는 REST 아키텍처의 self-descriptive 규약을 지키기 위해 REST API의 리소스 및 API 명세 그리고 요청과 응답 데이터의 설명까지 포함된 문서를 만들 수 있게 해준다.

참고 URL : https://docs.spring.io/spring-restdocs/docs/2.0.4.RELEASE/reference/html5/

Spring REST Docs

의존성 추가

<dependency>
    <groupId>org.springframework.restdocs</groupId>
    <artifactId>spring-restdocs-mockmvc</artifactId>
    <scope>test</scope>
</dependency>

소스

package org.kyhslam.rest.common;

import org.springframework.boot.test.autoconfigure.restdocs.RestDocsMockMvcConfigurationCustomizer;
import org.springframework.boot.test.context.TestConfiguration;
import org.springframework.context.annotation.Bean;
import org.springframework.restdocs.mockmvc.MockMvcRestDocumentationConfigurer;
import org.springframework.restdocs.operation.preprocess.Preprocessors;

@TestConfiguration
public class RestDocsConfiguration {

    @Bean
    public RestDocsMockMvcConfigurationCustomizer restDocsMockMvcConfigurationCustomizer(){
        return new RestDocsMockMvcConfigurationCustomizer() {
            @Override
            public void customize(MockMvcRestDocumentationConfigurer configurer) {
                configurer.operationPreprocessors()
                        .withRequestDefaults(Preprocessors.prettyPrint())
                        .withResponseDefaults(Preprocessors.prettyPrint());
            }
        };
    }

}

package org.kyhslam.rest;

import com.fasterxml.jackson.databind.ObjectMapper;
import org.hamcrest.Matchers;
import org.junit.Test;
import org.junit.runner.RunWith;
import org.kyhslam.rest.common.RestDocsConfiguration;
import org.kyhslam.rest.common.TestDescription;
import org.mockito.Mockito;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.test.autoconfigure.restdocs.AutoConfigureRestDocs;
import org.springframework.boot.test.autoconfigure.web.servlet.AutoConfigureMockMvc;
import org.springframework.boot.test.autoconfigure.web.servlet.WebMvcTest;
import org.springframework.boot.test.context.SpringBootTest;
import org.springframework.boot.test.mock.mockito.MockBean;
import org.springframework.context.annotation.Import;
import org.springframework.hateoas.MediaTypes;
import org.springframework.http.HttpHeaders;
import org.springframework.http.MediaType;
import org.springframework.restdocs.mockmvc.MockMvcRestDocumentation;
import org.springframework.test.context.junit4.SpringRunner;
import org.springframework.test.web.servlet.MockMvc;
import org.springframework.test.web.servlet.request.MockMvcRequestBuilders;
import org.springframework.test.web.servlet.result.MockMvcResultHandlers;
import org.springframework.test.web.servlet.result.MockMvcResultMatchers;

import java.time.LocalDateTime;

@RunWith(SpringRunner.class)
@SpringBootTest
@AutoConfigureMockMvc
@AutoConfigureRestDocs
@Import(RestDocsConfiguration.class)
public class EventControllerTests {

    @Autowired
    MockMvc mockMvc;

    @Autowired
    ObjectMapper objectMapper;

    @Test
    @TestDescription("정상적으로 이벤트를 생성하는 테스트")
    public void createEvent() throws Exception {

        Event event = Event.builder()
                .name("Spring")
                .description("REST API Development")
                .beginEnrollmentDateTime(LocalDateTime.of(2018,11,23,14,21))
                .closeEnrollmentDateTime(LocalDateTime.of(2018,11,23,14,21))
                .beginEventDateTime(LocalDateTime.of(2018,11,25,14,21))
                .endEventDateTime(LocalDateTime.of(2018,11,26,14,21))
                .basePrice(100)
                .maxPrice(200)
                .limitOfEnrollment(100)
                .location("강남역 d2 팩토리")
                .build();

        mockMvc.perform(MockMvcRequestBuilders.post("/api/events/")
                    .contentType(MediaType.APPLICATION_JSON_UTF8)
                    .accept(MediaTypes.HAL_JSON)
                    .content(objectMapper.writeValueAsString(event)))
                .andDo(MockMvcResultHandlers.print())
                .andExpect(MockMvcResultMatchers.status().isCreated())
                .andExpect(MockMvcResultMatchers.jsonPath("id").exists())
                .andExpect(MockMvcResultMatchers.header().exists(HttpHeaders.LOCATION))
                .andExpect(MockMvcResultMatchers.header().string(HttpHeaders.CONTENT_TYPE,MediaTypes.HAL_JSON_UTF8_VALUE))
                .andExpect(MockMvcResultMatchers.jsonPath("free").value(false))
                .andExpect(MockMvcResultMatchers.jsonPath("offline").value(true))
                .andExpect(MockMvcResultMatchers.jsonPath("eventStatus").value(EventStatus.DRAFT.name()))
                .andExpect(MockMvcResultMatchers.jsonPath("_links.self").exists())
                .andExpect(MockMvcResultMatchers.jsonPath("_links.query-events").exists())
                .andExpect(MockMvcResultMatchers.jsonPath("_links.update-event").exists())
                .andDo(MockMvcRestDocumentation.document("create-event"))
                ;

    }
}

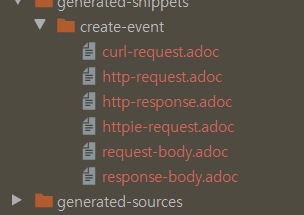

테스트를 실행하면 아래와 같이 폴더와 파일이 생성 된다.

결과

[source,bash]
----
$ curl 'http://localhost:8080/api/events/' -i -X POST \
    -H 'Content-Type: application/json;charset=UTF-8' \
    -H 'Accept: application/hal+json' \
    -d '{
  "id" : null,
  "name" : "Spring",
  "description" : "REST API Development",
  "beginEnrollmentDateTime" : "2018-11-23T14:21:00",
  "closeEnrollmentDateTime" : "2018-11-23T14:21:00",
  "beginEventDateTime" : "2018-11-25T14:21:00",
  "endEventDateTime" : "2018-11-26T14:21:00",
  "location" : "강남역 d2 팩토리",
  "basePrice" : 100,
  "maxPrice" : 200,
  "limitOfEnrollment" : 100,
  "offline" : false,
  "free" : false,
  "eventStatus" : null
}'
----
